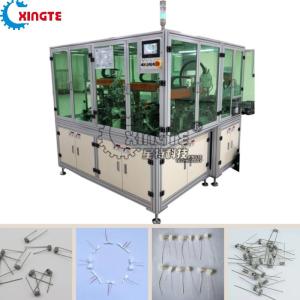

XT-PHJ Automatic coil winding machine for e-cigarette heating coil winding
Equipment overview:
This equipment is a new automated equipment specially developed for the production of electronic cigarette heating coil welding and cotton wire winding processes. This equipment has been customized and developed a butt welding wire system according to customer needs. It has high butt-welding accuracy and a stable butt-welding effect. It can directly connect to the cotton wire winding process of the electronic cigarette heating core. The process connection is smooth, which can greatly improve work efficiency and reduce the cost of welding
Product Features:
The equipment adopts an advanced servo control system, which can automatically adjust relevant actions according to the parameter instructions input by the operator to meet the requirements of butt welding and winding; the main components use imported servo motors, hollow platforms, linear guide rails, wire Rods, etc., with high transmission precision, stable equipment operation, and long service life.
This equipment can be connected to the electronic cigarette heating core cotton wire winding automated production line. The whole process does not require manual operation. It has a high degree of automation, stable equipment operation, a small footprint, and a high finished product yield. It can not only save labor costs but also produce higher-quality products.
Product parameters
| Model number: | XT-PHJ |
| Number of axis | 16 axis |
| Yield rate | ＞ 98% |
| Utilization rate | ＞85% |
| winding speed | 3000rpm |
| Capacity | 1200pcs/H |
| Control method | touch screen |
| Power: | 3.5 KW |
| Power supply: | AC 220V,50/60Hz |
| Air pressure: | > 0.6Mpa |
| Machine dimension: | 2600(L)×1800(W)×1900(H)mm |
| G. W: | 1150KGS |
Applications
E-cigarette production
Basic information about XINGTE
Experience
XINGTE was established in 2007, with more than 17 years R & D experience in the coil winding area
Plant Size
XINGTE is headquartered in Shenzhen, with a factory area of more than 30,000 square meters, which can ensure our Strong productivity
Service
XINGTE has more than 230 technical service and after-sales staff, worldwide service points worry-free after-sales service
Patents & certificates
Patents & certificates:
XINGTE obtained 120+ Patents and related certificates
Production Capacity
XINGTE has more than 600 experienced employees, which can guarantee our Production capacity and fast delivery
Technology
XINGTE has more than 130 experienced engineers, which can ensure our strong R & D ability, also can guarantee our customization capability
XINGTE PRODUCTION LINE
1, Motor stator, rotor, and other related coil winding machine
2, Transformer-related product coil winding machine
3, voice coil-related product winding machine
4, inductor coil winding machine and
5, customized fully automatic line for the motor, speaker, transformer production line
Our factory
Machines
E-cigarette heating coil finished product
Order process
Delivery
